The DC24V LED downlight represents the forefront of energy-efficient lighting. Tailored for commercial and industrial use, its low voltage design ensures enhanced safety and compatibility with eco-friendly power systems. Installation is straightforward: simply connect the downlight to a DC24V power source, ensuring secure, hassle-free integration into any setting. It can be directly integrated with the DALI system, eliminating the need to equip the lights with additional power sources. This significantly lowers the budget for projects.
FINISH
Black
White
Silvery
CERTIFICATIONS
FEATURES
Parameter
- Housing Material
- Aluminium
- Housing Color
- White/Black
- Rated Input
- 8 W
- Rated Input Voltage
- 220 V
- Frequency
- 50 / 60 Hz
- Light Source
- Light source not changeable
- Light Source
- LED
- Luminous Efficiency
- 70 lm/W,75lm/W,80lm/W
- Light Distribution
- Symmetric
- Colour Consistency
- 5 SDCM
- Switching Cycles
- 25000 h
- Swivel Angle
- Non-rotatable
- Toolless Assembly
- Yes
- Product weight
- 130 g
- Connection Type
- Clamp
- Primary Connection
- Connection box IP20
- Power Supply Unit incl.
- Yes
- Power Consumption
- 8 kWh/1000h
- Inrush Current max.
- 5 A / 100 µs
- Power Factor
- 0.90
- Working Temperature
- -20 to 40 °C
- Storage Temperature
- -20 to 40 °C
- Mounting Type
- Surface mount
- Mounting Location
- Inside
- IP Protection Class
- IP 20
- Life Time L70 / B50
- 50000 h
- Energy efficiency class
- E
- Mounting Area
- Ceiling installation
- Control
- DALI
- Control
- Zigbee
- Dimmable
- Yes
- Motion Detector
- No
- Through Wiring possible
- Yes
- Power Supply Unit Changeable
- Yes by technician
- Protection Class
- Protection class II
- Lightcolor
- Warm white (WW)
- Color Temperature
- 2700K/6500K
- Colour Rendering Index (Ra)
- 90
- Rated Luminous Flux
- 560lm/600lm/640lm
- Light direction
- Below
- Rated Angle of Reflection
- 24°/36°/45°
- Turning and Swiveling Range
- Swiveling

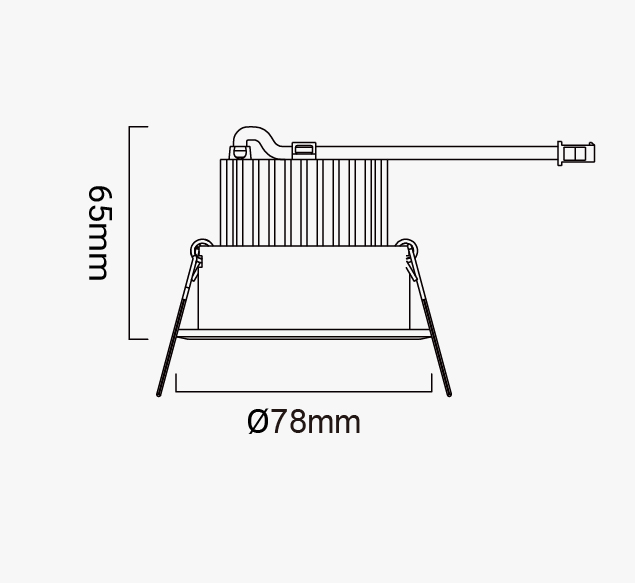

- Height
- 65mm
- Diameter
- 78mm
- Cut Out Diameter
- 70mm
- Mounting Surface Thickness
- 9-13 mm
Featues

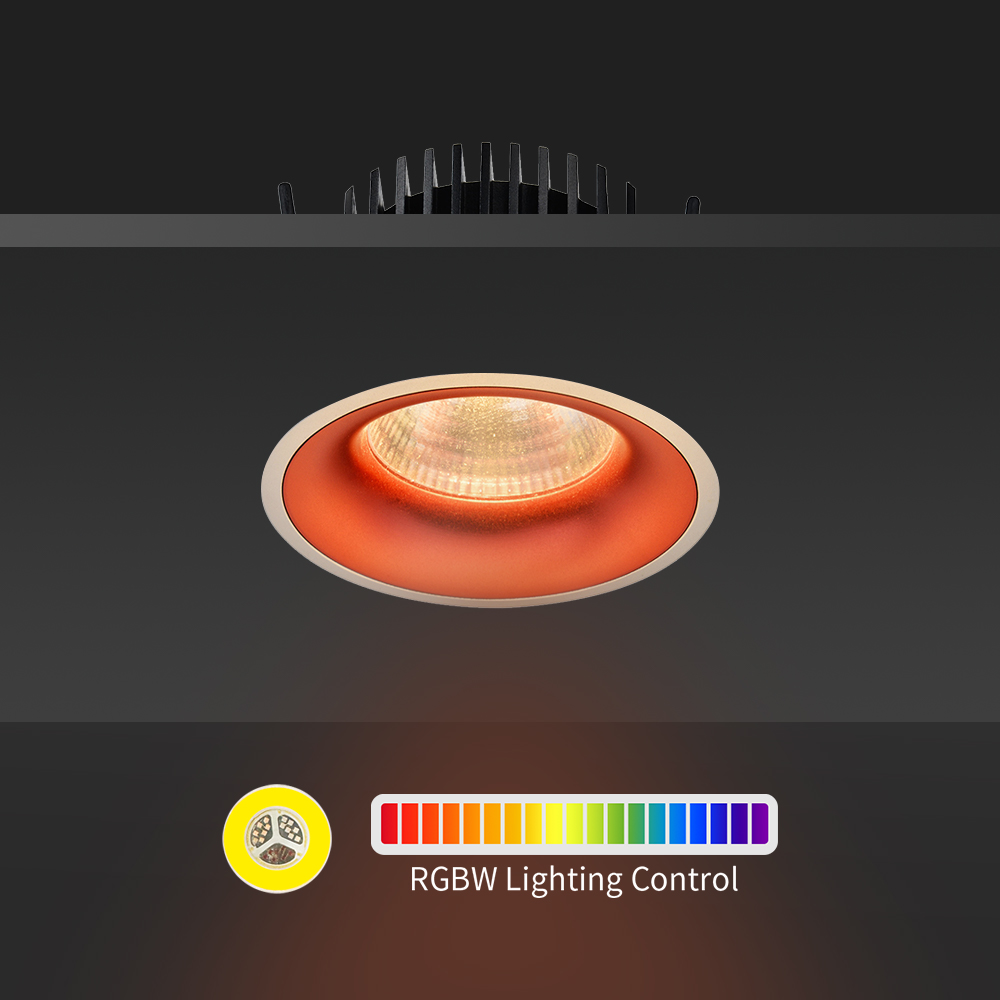

● Available in monochrome, dual color, and RGBW.
● DC24V voltage, safe and cost-effective.
● Stylish and versatile design.
● Compatible with Triac dimming, DALl dimming,Zigbee dimming..
● Complimentary Samples Available
● 5-Year Warranty Assurance.
